fuel dispensing hose
G603 PREMIUM FARM TANK
Premium Farm Tank is commonly used for dispensing gasoline or diesel from drums, skid tanks and storage tanks using gravity feed or low pressure pumps. G603 is also excellent for lubricating and fuel oils. While many farm tank hoses use PVC in the cover compound, we do not. PVC provides stiffness and some wear resistance, but it becomes very stiff in cold weather. For Canadian markets, an all-rubber hose is preferred.
Click here for specs or here for assemblies
| Tube: | Black nitrile rubber specially compounded to handle unleaded and leaded fuels with up to 50% aromatic content. |
| Reinforcement: | High-tensile spiraled synthetic yarn. |
| Cover: | Two spirals of polyester yarn plus built-in static wire. |
| Temperature Range: | -40°C(-40°F) to 95°C (203°F) |
G621 HARDWALL CURB PUMP
Hard wall Curb Pump is used for dispensing most types of fuel from service station pumps. Compatible fuels include unleaded gasoline, diesel, and white gas. The wire braid reinforcement provides the hose with excellent kink and crush resistance and also dissipates static electricity.
Click here for specs or here for assemblies
| Tube: | Smooth, black, gasoline and oil resistant nitrile rubber. |
| Reinforcement: | High-tensile steel wire, tightly braided for maximum flexibility. |
| Cover: | Smooth, black, oil, abrasion, and weather resistant rubber. |
| Temperature Range: | -40°C (-40°F) to 95°C (203°F) |
G623 FUEL OIL DELIVERY
Fuel Oil Delivery was originally designed to fit on the hose reels of home heating oil delivery trucks. However, features such as an ability to handle a variety of fuels, non-marking cover, and good kink resistance, have made G623 popular as a gasoline and diesel dispensing hose on marine refueling barges and in logging camps.
| Tube: | Smooth, black, gasoline and oil resistant nitrile rubber. |
| Reinforcement: | High-tensile, synthetic, spiraled yarn. |
| Cover: | Smooth, black, oil, abrasion, and weather resistant rubber. |
| Temperature Range: | -40°C (-40°F) to 95°C (203°F) |
G625 ARCTIC FUEL OIL DELIVERY
G625 is designed for oil and fuel delivery in cold climates where conventional hoses become too stiff and even brittle. The wrapped-ply fabric reinforcement provides good kink resistance, while the special rubber compounds used in both tube and cover ensure flexibility in use at -40°C (-40°F). Below -40°C hoses begin to stiffen but will not become brittle until below -55°C (-67°F).
Note: When installing couplings, the anti-static wire should be exposed and folded into the inside of the hose so that it comes into permanent contact with the couplings. The anti static wire dissipates static charges that may build up during fluid flow.
G626 POLAR FUEL & MULTI-PURPOSE HOSE
This blue, smooth cover hose is ideal for a wide variety of
applications in the coldest of climates. G626 maintains flexibility
down to -55°C (-67°F) and can be used for gasoline,
fuel oil, kerosene, air, and many chemicals.
Note: When installing couplings on fuel fill hoses, the anti static
wire should be exposed and folded into the inside
of the hose so that it comes into permanent contact with
the couplings. This should be confirmed with an electrical
continuity check prior to service.
Click here for specs or here for assemblies.
| Tube: | Smooth, black, gasoline and oil resistant synthetic rubber. |
| Reinforcement: | Spiral layers of polyester cord. 3/4"and larger sizes have a static wire. |
| Cover: | Smooth, blue, oil resistant rubber |
| Temperature Range: | -55°C (-67°F) to 80°C (176°F) |
Tank Truck Hose
G643 NORTH STAR TANK TRUCK
North Star Tank Truck is designed specifically for bulk transfer service, where ease of use is critical to the operator. G643 is much more flexible than regular petroleum transfer, particularly at sub zero temperatures. In northern climates, G643 extends the season for regular tank truck hose, reducing the use of more expensive, specially formulated arctic hoses.
| Tube: | Smooth, black, gasoline and oil resistant synthetic rubber. |
| Reinforcement: | Spiral layers of polyester cord. 3/4"and larger sizes have a static wire. |
| Cover: | Smooth, blue, oil resistant rubber |
| Temperature Range: | -55°C (-67°F) to 80°C (176°F) |
G643C NORTH STAR CORRUGATED TANK TRUCK
Corrugated tank truck offers the same features as regular North Star, but the corrugated cover style allows for greater flexibility. In applications where the hose is regularly moved, or connected and disconnected, less force is required to bend this hose, making it easier to handle.
| Tube: | Black, nitrile rubber, suitable for all grades of gasoline and petroleum products with up to 50% aromatic content. |
| Reinforcement: | Heavy wire helix embedded between layers of synthetic textile cords. |
| Cover: | Black, corrugated finish, oil, weather and abrasion resistant neoprene rubber. |
| Temperature Range: | -40°C (-40°F) to 100°C (212°F). |
G642L ARCTIC NORTHERN-LITE
Northern-Lite is a multi-purpose petroleum suction and discharge hose designed to be used at extremely low temperatures. The unusual square corrugation makes this hose flexible and lightweight enough to be used as a drop hose. The full vacuum and 150 psi pressure rating also make it a good performer for general transfer service. Northern-Lite is used for cold weather applications such as oil field service, loading and unloading tank trucks and rail cars.
| Tube: | Black, nitrile/hydrin rubber, suitable for general petroleum products. |
| Reinforcement: | Heavy wire helix embedded between layers of synthetic textile cords. |
| Cover: | Flat corrugated, black, oil, abrasion, and weather resistant nitrile rubber with blue stripe. |
| Temperature Range: | -55°C (-67°F) to 80°C (176°F) |
G643L POLAR TANK TRUCK
Northern-Lite is a multi-purpose petroleum suction and discharge hose designed to be used at extremely low temperatures. The unusual square corrugation makes this hose flexible and lightweight enough to be used as a drop hose. The full vacuum and 150 psi pressure rating also make it a good performer for general transfer service. Northern-Lite is used for cold weather applications such as oil field service, loading and unloading tank trucks and rail cars.
| Tube: | Black, nitrile/hydrin rubber, suitable for general petroleum products. |
| Reinforcement: | Heavy wire helix embedded between layers of synthetic textile cords. |
| Cover: | Flat corrugated, black, oil, abrasion, and weather resistant nitrile rubber with blue stripe. |
| Temperature Range: | -55°C (-67°F) to 80°C (176°F) |
G1641C URETHANE DROP HOSE
G1641C is different from other PVC gasoline drop hoses currently found in the market. It has a unique polyurethane tube that combines the advantages of good chemical resistance, light weight, and low temperature flexibility. G1641C is now green to signify that it is suitable for use with ethanol (up to E98) and bio diesel fuels that conform to ASTM D6751 (up to B100). This product comes complete with a static wire to ensure positive grounding when properly coupled.
| Tube: | Clear polyurethane, suitable for gasoline and petroleum products with up to 50% aromatic content. |
| Reinforcement: | Polyester fabric reinforcing with embedded copper static wire for positive grounding, and a green spiral PVC helix. |
| Cover: | Clear urethane cover with distinctive green helix. |
| Temperature Range: | -40°C (-40°F) to 65°C (150°F). |
G1640C URETHANE VAPOR RECOVERY HOSE
Vapor recovery hoses are used on fuel delivery tankers to reduce hydrocarbon emissions at service stations and bulk terminals. G1640C has the same Bio Fuel approvals as G1641C, and the same added benefits that come from a urethane hose; it is lightweight, flexible in sub-zero weather, and abrasion resistant for long service life.
| Tube: | Clear polyurethane tube suitable for gasoline and petroleum products and vapors, supported by a yellow spiral PVC helix with embedded copper static wire for grounding. |
| Temperature Range: | -40°C (40°F) to 65°C (150°F) |
G941WOR LIGHTWEIGHT OIL TRANSFER
This hose is designed for applications where high flexibility is needed. G941WOR is recommended for use with most oil-based products at ambient temperature. It is ideal for vapor recovery and for oil spill cleanup. Not recommended for applications where a static wire is required.
| Tube: | Orange, flexible, thermoplastic supported by a rigid PVC helix. |
| Reinforcement: | Smooth, orange, oil resistant thermoplastic compound. |
| Cover: | Oil resistant PVC, corrugated for increased flexibility. |
| Temperature Range: | Static condition: -20°C (-4°F)
to 65°C (150°F). Dynamic condition: -10°C (14°F) to 40°C (104°F) |
G645 HOT TAR & ASPHALT
Our Hot Tar & Asphalt hose is designed for maximum heat resistance for use with hot materials used in road paving operations. G645 is rated to 175°C for maximum safety.
Note: Most hot tar hose failures occur as fitting blow-offs. We recommend the use of locking style fittings such as the G23T tri-lock fitting.
| Tube: | Black, nitrile rubber, formulated for maximum heat resistance. |
| Reinforcement: | Heavy wire helix embedded between layers of synthetic textile cords |
| Cover: | Black, wrapped finish, oil and heat resistant nitrile rubber. |
| Temperature Range: | -40°C (-40°F) to 175°C (347°F). |

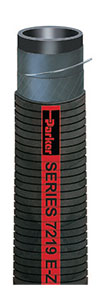

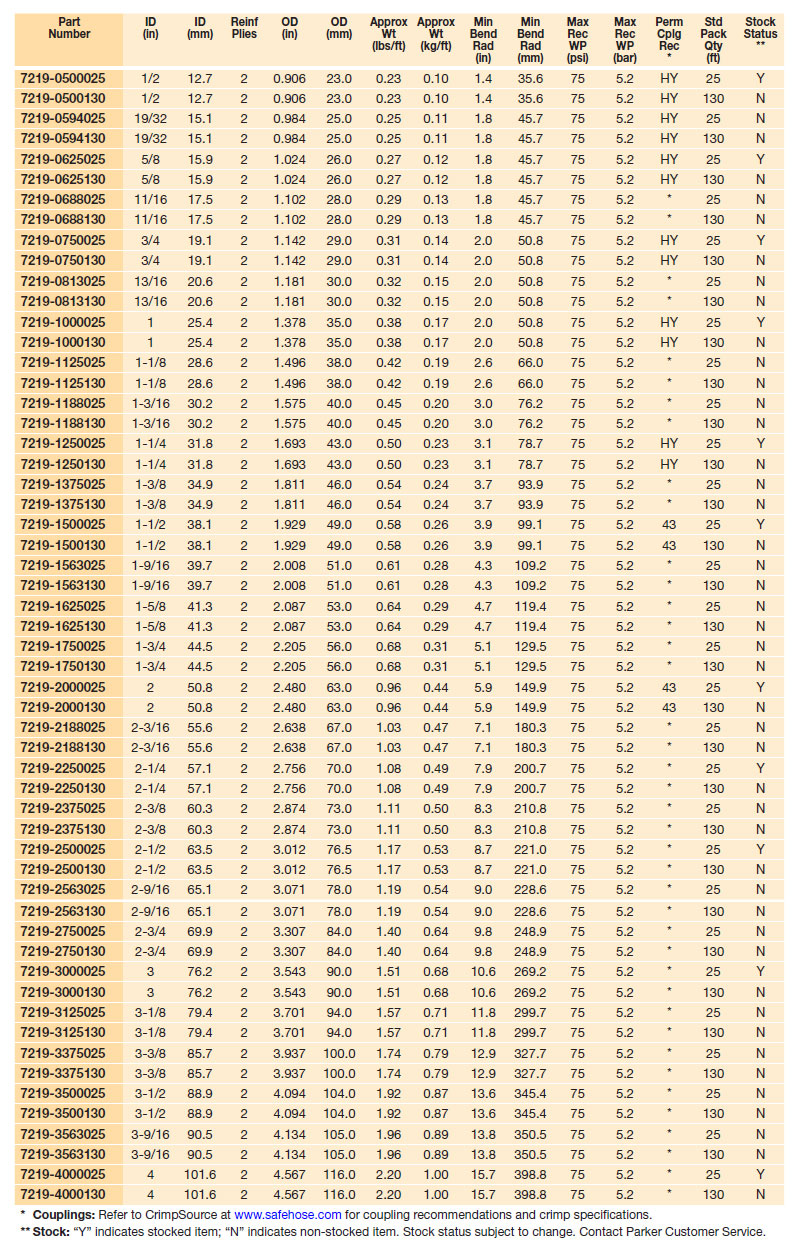

E-Z FORM™ MP Multipurpose Oil Resistant Hose Series 7219
Series 7219 is an extremely flexible, lightweight, low pressure oil suction/return hose and vehicle fuel fill connector line—as well as a suction and discharge hose for refined fuels such as biodiesel (to B20 in dedicated and non-dedicated service), diesel, ethanol and gasoline. The lightweight Greek corrugated hose construction incorporates a wire helix that provides full suction capability, superior kink resistance, minimal force-to-bend and a path to conduct a static electrical charge to ground. The unique Greek corrugations are tightly pitched and precision-engineered, providing extreme flexibility and kink resistance compared to the traditional rounded corrugation profile. The cover is resistant to oil and weathering. Series 7219 is capable of being routed through confined spaces where formed hose might normally be required.
| Tube: | Black chloroprene |
| Reinforcement: | Multiple textile plies with wire helix |
| Cover: | Black chloroprene; Greek corrugated finish |
| Temperature Range: | -20°F to +200°F (-29°C to +93°C) |
| Brand Method: | Black text on red stripe |
| Brand Example: | PARKER SERIES 7219 E-Z FORM™ MP HOSE 75 PSI MAX WP |
| Design Factor: | 4:1 |
| Industry Standards: | None applicable |
| Applications: | Biodiesel (to B20 in dedicated and non-dedicated service), diesel,
ethanol, gasoline Oil suction/return lines; vehicle fuel fill connector lines; drain lines Buses, cranes, mobile off-road equipment |
| Vacuum: | Full | Packaging: | Coils |
Oil Field Hose
G653 3000 psi BLOW–OUT PREVENTER
On an oil drilling rig, the blow-out preventer (BOP) is a valve system at the wellhead that can be activated quickly to close the space around the drill, or even completely close an open drill hole. There are multiple BOP valves used on each rig, and the valves are controlled hydraulically. When excessive pressure in the hole causes a "kick", the BOP is used to prevent a blow-out. Hoses that connect the BOP to the hydraulic system are required to have thick, flame resistant covers that allow them to survive in the case of a fire, so that the BOP still functions.
Click here for specs or here for assemblies
| Tube: | Smooth, black, oil resistant nitrile rubber. |
| Reinforcement: | Two braids of high tensile steel wire. |
| Cover: | Red, thick, fire resistant neoprene rubber composite with wrapped finish. |
| Temperature Range: | -40°C (-40°F) to 120°C (248°F). Tested according to Lloyd’s Register requirements to withstand 700°C (1292°F) for more than 5 minutes at full working pressure. |
G662-300 2400 psi KELLY HOSE
G662-300 is reinforced with four layers of wire braid to provide a burst pressure of over 6000 psi. This allows a pressure rating of 2400 psi with a 2-1/2:1 safety factor, or 1500 psi where a 4:1 safety factor is required (in hydraulic service, for example).
Click here for specs or here for assemblies
| Tube: | Smooth, black, oil resistant synthetic rubber. |
| Reinforcement: | Four braids of high tensile steel wire. |
| Cover: | Black, ozone and weather resistant synthetic rubber with orange stripe. |
| Temperature Range: | -40°C (-40°F) to 93°C (200°F). |
G663 3600 psi KELLY HOSE
663 Kelly Hose is rated to 3600 psi with a full 4:1 safety factor. G663
is manufactured in long lengths of up to 164 ft to minimize remnants when long
assemblies are required.
Click here for specs or here for assemblies
| Tube: | Smooth, black, oil resistant synthetic rubber. |
| Reinforcement: | Four braids of high tensile steel wire. |
| Cover: | Black, ozone and weather resistant synthetic rubber with abrasion resistance. |
| Temperature Range: | -40°C (-40°F) to 120°C (248°F). |
G665 5000 psi KELLY HOSE
Six layers of spiral wire reinforcement make G665 our highest pressure Kelly hose. It has a full 4:1 safety factor and is supplied in lengths up to 50 meters (164 ft) to minimize scrap.
| Tube: | Smooth, black, oil resistant synthetic rubber. |
| Reinforcement: | Six layers of high tensile steel spiral wire |
| Cover: | Black, ozone and weather resistant synthetic rubber with brown stripe. |
| Temperature Range: | -40°C (-40°F) to 120°C(248°F) |
G116 RECORDER HOSE
G116 hose assemblies are used to record data during well fracturing operations. The low volumetric expansion of G116 hose coupled with it's extremely high working pressure and tough urethane cover make it the ideal hose for this application. Fittings are factory installed and assemblies are 100% tested prior to use.
Click here for specs or here for assemblies
| Tube: | Polyamide (Nylon) |
| Reinforcement: | spiral layers of wire and one wire braid |
| Cover: | Black polyurethane |
| Temperature Range: | -40°C (-40°F) to 100°C (212°F) |
