Accessories

0009 SAE FLANGE REPLACEMENT RINGS

Part Number       O-Ring I.D.              Wall Dia.             Flange Size

0009-210              0·734"                   0·139"                   -08
0009-214              0·984"                   0·139"                   -12
0009-219              1·296"                   0·139"                   -16
0009-222              1·484"                   0·139"                   -20
0009-225              1·859"                   0·139"                   -24

0009-228              2·234"                   0·139"                   -32
0009-232              2·734"                   0·139"                   -40
0009-237              3·359"                   0·139"                   -48

0011 O-RING BOSS REPLACEMENT RINGS

Part Number       O-Ring I.D.              Wall Dia.             Flange Size

0009-210              0·734"                   0·139"                   -08
0009-214              0·984"                   0·139"                   -12
0009-219              1·296"                   0·139"                   -16
0009-222              1·484"                   0·139"                   -20
0009-225              1·859"                   0·139"                   -24

0009-228              2·234"                   0·139"                   -32
0009-232              2·734"                   0·139"                   -40
0009-237              3·359"                   0·139"                   -48

0011KIT ORB BOSS O-RING KIT

Part Number       Description

0011-KIT            ORB O-Ring Kit

Contains 250 assorted 90 durometer o-rings for o-ring boss
connections in sizes -04 to -32
·





00026 BSP O-RINGS FOR RECESSED PORT ADAPTERS

Part Number      BSPP Male

00026-04      1/4-19
00026-06      3/8-19
00026-08      1/2-14
00026-10      5/8-14
00026-12      3/4-14

00026-16      1-11
00026-20      1-1/4-11
00026-24      1-1/2-11

00036 BSP BONDED SEALS

Part Number  BSPP Male

00036-02      1/8-27
00036-04      1/4-19
00036-06      3/8-19
00036-08      1/2-14
00036-10      5/8-14

00036-12      3/4-14
00036-16      1-11
00036-20      1·1/4-11
00036-24      1·1/2-11
00036-32      2-11

00073 BONDED SEAL FOR METRIC THREAD

Part Number      Metric Male

00073-06              6mm
00073-08              8mm
00073-10              10mm
00073-12              12mm
00073-14              14mm

00073-16             16mm
00073-18             18mm
00073-20             20mm
00073-22             22mm
00073-24             24mm

00073-26             26mm
00073-30             30mm
00073-33             33mm

00093 O-RING FACE SEAL REPLACEMENT RINGS

Part Number      O-Ring I.D.               Wall Dia.

00093-04              0·301"                   0·070"
00093-06              0·364"                   0·070"
00093-08              0·489"                   0·070"
00093-10              0·614"                   0·070"
00093-12              0·739"                   0·070"

00093-16              0·926"                   0·070"
00093-20              1·176"                   0·070"
00093-24              1·489"                   0·070"

00093KIT O-RING FACE SEAL KIT

Part Number       O-Ring I.D.              Wall Dia.             Flange Size

0009-210              0·734"                   0·139"                   -08
0009-214              0·984"                   0·139"                   -12
0009-219              1·296"                   0·139"                   -16
0009-222              1·484"                   0·139"                   -20
0009-225              1·859"                   0·139"                   -24

0009-228              2·234"                   0·139"                   -32
0009-232              2·734"                   0·139"                   -40
0009-237              3·359"                   0·139"                   -48

G6 VINYL COATED SUPPORT CLAMPS

Part Number      Inside Dia.

G6-04                    1/4"
G6-06                    3/8"
G6-07                    7/16"
G6-08                    1/2"
G6-09                    9/16"

G6-10                    5/8"
G6-11                    11/16"
G6-12                    3/4"
G6-13                    13/16"
G6-15                    15/16"

G6-16                    1"
G6-17                    1·1/16"
G6-18                    1·1/8"
G6-19                    1·3/16"
G6-20                    1·1/4"

G6-24                    1·1/2"
G6-25                    1·9/16"
G6-28                    1·3/4"
G6-29                    1·13/16"
G6-32                    2"

G6-33                    2·1/16"
G6-36                    2·1/4"
G6-44                    2·3/4"
G6-46                    2·7/8"

G6N RUBBER CUSHIONED SUPPORT CLAMP

Part Number      Inside Dia.

G6N-04          1/4"
G6N-06          3/8"
G6N-08          1/2"
G6N-10          5/8"
G6N-12          3/4"

G6N-16          1"
G6N-20          1·1/4"
G6N-24          1·1/2"
G6N-32          2"

G6N clamps have a 1/2" wide galvanized steel strap
fitted with a rubber liner· The bolt hole measures 0·256"

G38 DOUBLE BOLT CLAMPS

Part Number     Minimum Size        Maximum Size

G38-075                1·13"                      1·19"
G38-100                1·56"                      1·81"
G38-125                1·75"                      2·05"
G38-150                2·11"                      2·30"
G38-200                2·31"                      2·63"

G9 PROTECTIVE CAP PLUGS

Part Number         A   -   B                  C   -   D                 E   -   F

G9-01             0.236 - 0.302          0.174 - 0.240       0.380 - 0.440
G9-02             0.299 - 0.365          0.235 - 0.302       0.380 - 0.500
G9-03             0.361 - 0.427          0.298 - 0.365       0.380 - 0.560
G9-04             0.419 - 0.485          0.356 - 0.422       0.380 - 0.630
G9-04X           0.447 - 0.513          0.385 - 0.451       0.380 - 0.660

G9-05             0.471 - 0.547          0.409 - 0.485       0.440 - 0.690
G9-05X           0.500 - 0.576          0.440 - 0.516       0.440 - 0.720
G9-06             0.532 - 0.608          0.468 - 0.545       0.440 - 0.750
G9-06X           0.550 - 0.631          0.487 - 0.568       0.470 - 0.750
G9-08             0.640 - 0.727          0.578 - 0.664       0.500 - 0.880

G9-09             0.690 - 0.788          0.628 - 0.726       0.560 - 0.940
G9-09X           0.725 - 0.823          0.663 - 0.761       0.560 - 0.970
G9-10             0.750 - 0.848          0.687 - 0.785       0.560 - 1.000
G9-11             0.802 - 0.911          0.740 - 0.849       0.630 - 1.060
G9-11X           0.815 - 0.930          0.753 - 0.868       0.630 - 1.090

G9-12X           0.915 - 1.040         0.855 - 0.980        0.690 - 1.160
G9-13X           0.995 - 1.145         0.933 - 1.083        0.750 - 1.310
G9-14X           1.175 - 1.284         1.113 - 1.222        0.630 - 1.440
G9-15X           1.235 - 1.360         1.173 - 1.298        0.810 - 1.500
G9-17X           1.513 - 1.600         1.451 - 1.537        0.500 - 1.750

G9-18             1.560 - 1.682         1.498 - 1.620        0.750 - 1.880
G9-19             1.750 - 1.880         1.688 - 1.818        0.750 - 2.000
G9-20             1.780 - 1.950         1.718 - 1.888        1.000 - 2.130
G9-240           2.298 - 2.464         2.235 - 2.401        1.000 - 2.630
G9-250           2.395 - 2.602         2.333 - 2.540        1.130 - 2.810

0500P PLASTIC TEAR-OFF JIC CAPS

Part Number      For JIC Thread

0500P-04              7/16-20
0500P-06              9/16-18
0500P-08              3/4-16
0500P-10              7/8-14
0500P-12              1·1/16-12

0500P-16              1·5/16-12

0500PT PLASTIC THREADED JIC CAPS

Part Number      JIC Thread

0500PT-04           7/16-20
0500PT-05           1/2-20
0500PT-06           9/16-18
0500PT-08           3/4-16
0500PT-10           7/8-14

0500PT-12           1·1/16-12
0500PT-16           1·5/16-12
0500PT-20           1·5/8-12
0500PT-24           1·7/8-12

0800P PLASTIC TEAR-OFF NPT PIPE CAPS

Part Number      Inside Dia.

0800P-04              1/4-18
0800P-06              3/8-18
0800P-08              1/2-14
0800P-12              3/4-14
0800P-16              1-11·1/2

0800P-20              1·1/4-11·1/2

1500P PLASTIC THREADED JIC PLUGS

Part Number        JIC Thread

1500P-04              7/16-20
1500P-05              1/2-20
1500P-06              9/16-18
1500P-08              3/4-16
1500P-10              7/8-14

1500P-12              1·1/16-12
1500P-16              1·5/16-12
1500P-20              1·5/8-12
1500P-24              1·7/8-12

PAS POLYESTER ABRASION SLEEVE

Part Number      Sleeve I.D

PAS-100               1"
PAS-113               1-1/8"
PAS-150               1-1/2"
PAS-185               1-7/8"
PAS-200               2"

PAS-250               2.5"
PAS-288               2-7/8"
PAS-331               3-5/16"
PAS-366               3-5/8"

PUBS POLYURETHANE SMOOTH ABRASION SLEEVE

Part Number       Sleeve I.D.       Standard Length

Black:
PUBS-088                 7/8”                    30 ft
PUBS-100                 1”                       30
PUBS-113                 1-1/8”                 30
PUBS-125                 1-1/4”                 30
PUBS-138                 1-3/8”                 30
PUBS-163                 1-58”                 30
Yellow:
PUYS-100                 1”                        30 ft
PUYS-138                 1-3/8”                 30

Polyurethane sleeve is smooth, extremely abrasion resistant,
and flame retardant. The UV resistant material will not soak up
debris and oil to cause a fire hazard as woven nylon or polyester
can. Choose from black (PUBS) or bright yellow (PUYS)

PG PLASTIC HOSE GUARD

Part Number      Sleeve I.D

PG-025                 1/4"
PG-038                 3/8"
PG-050                 1/2"
PG-063                 5/8"
PG-075                 3/4"

PG-100                 1"
PG-138                 1·3/8"
PG-163                 1·5/8"
PG-188                 1·7/8"

Plastic protective coil is a flat plastic amour guard designed
to offer both abrasion resistance and kink resistance. This light
weight plastic coil is made from abrasion and petroleum
resistant thermoplastic and can also be used to bundle hose lines together.

PGH HEAVY POLYETHYLENE HOSE GUARD

Part Number     Guard I.D.       Fits Hose OD Range

PGH-050             0.53"                    1/2" – 1"
PGH-075             0.77"                    3/4" – 1·1/2"
PGH-100             1.00"                    1" – 2"
PGH-125             1.30"                    1·1/4" – 2·1/2"
PGH-150             1.53"                    1·1/2" – 3"
PGH-200             1.90"                    2"-4"
PGH-300             3.25"                    3"
PGH-400             4.00"                    4"

PGH is a heavier hose wrap commonly found in extreme
applications in forestry and mining. It is used for bundling
and abrasion resistance.

SG STEEL SPRING HOSE GUARD

Part Number      Spring I.D.

SG-063                  5/8"
SG-075                  3/4"
SG-088                  7/8"
SG-100                  1"
SG-118                  1·3/16"

SG-131                  1·5/16"
SG-163                  1·5/8"
SG-213                  2·1/8"
SG-238                  2·3/8"

CB HOSE CUT-OFF SAW REPLACEMENT BLADES

Part Number      Sleeve I.D

CB-7                   Steel 7" Diameter Blade with 5/8" Arbour
CBS-7                 Steel 7" Diameter Reversible Blade with 5/8" Arbour
CB-10                 Steel 10" Diameter Blade with 3/4" Arbour
CBS-10               Steel 10" Diameter Reversible Blade with 3/4" Arbour

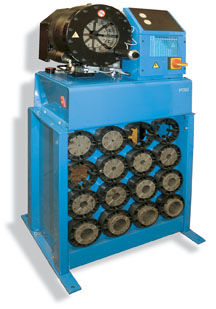

P32M PULSAR HYDRAULIC CRIMPER

Part Number       Description

P32M                 2" Hydraulic Hose Crimper











D105M/D165M PULSAR HYDRAULIC CRIMPER

Part Number          Description

D105M                  35 Ton Hydraulic Hose Crimper
D165M                  65 Ton Hydraulic Hose Crimper









D205M PULSAR HYDRAULIC CRIMPER

Part Number        Description

D205M                1-1/4" Hydraulic Hose Crimper, 2hp, 220v









ST SKIVING TOOL ACCESSORIES

Part Number      Description

STB                   Replacement Cutting Blade
STH                   Replacement Handle

STe EXTERNAL SKIVING TOOL

Part Number      Hose I.D.              Skive Length

ST5904-04            1/4"                       20mm
ST5904-06            3/8"                       20mm
ST5904-08            1/2"                       26mm
ST5904-10            5/8"                       28mm
ST5904-12            3/4"                       31mm

ST5904-16            1"                          37mm
ST5904-20            1·1/4"                    41mm
ST5904-24            1·1/2"                    47mm
ST5904-32            2"                          60mm
ST8604-12            3/4"                       52mm

ST8604-16            1"                          65mm
ST8604-20            1·1/4"                    74mm
ST8604-24            1·1/2"                    81mm
ST8604-32            2"                          85mm

CS-7 HYDRAULIC HOSE CUT-OFF SAWS

Part Number      Description

CB-7                  Steel 7" diameter blade
CBS-7                Steel 7" diameter reversible long life scalloped blade
                          for better heat dissipation and extra-clean cut
                          Arbor hole diameter 5/8".



CS-10 HYDRAULIC HOSE CUT-OFF SAWS

Part Number      Description

CB-10                Steel, 10" diameter blade
CBS-10              Steel, 10" diameter, reversible, long life scalloped
                          blade for better heat dissipation and extra-clean
                          cut Arbor hole diameter 3/4".



REELRACK 8

In answer to requests for reel holding equipment we now offer
a mobile reel stand. This simple, robust unit is constructed using
1-1/2" square steel tube and comfortably holds a minimum of 8
reels of hydraulic hose. For easy movement and storage away
from cutting and coupling equipment, the unit is supplied with
two fixed and two rotating lockable casters. Reels are easily
changed, without pinched fingers, by inserting the lifting rod
through the steel tube reel supports, and lifting the reel from the
outsides of the frame.

DIMENSIONS: 35" wide x 35" deep x 92" high (without reels)


HOSEREEL 7

In an effort to reduce packaging, and its effect on the environment,
we offer a hose storage and dispensing rack. The
HOSEREEL7 conveniently handles seven of your most popular
coiled lengths of hose without the need for wooden or plastic
disposable reels. You can purchase hose in smaller quantities to
increase your inventory turns, and you save the cost of breaking
down the empty reel and sending it to a landfill. Trays pivot out
as shown for easy reloading. Each tray will hold 80 Kg (176 lb) of
hose.


DIMENSIONS: 50" wide x 40" deep x 88" high
WEIGHT: 148 kg (326 lb)
COIL SIZE: 10" Minimum inside diameter
                    40" Maximum outside diameter
